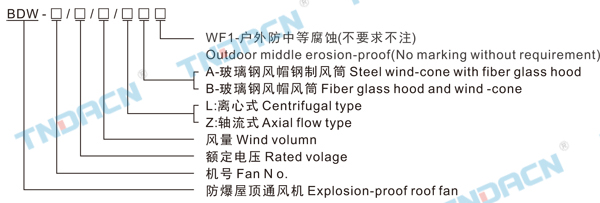

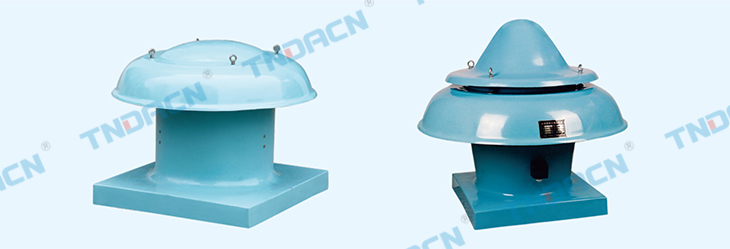

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.壓力要求較高的場所；
4.戶內、戶外(IP65、IP66*)；
5.溫度組別：T1~T6；
6.應用于石油、化工、航天、軍工等場所。
1.Hazardous: division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammabledust environment;
3.hi-pressure place;
4.Indoor or outdoor(IP65,IP66*);
5.Temperature class:T1~T6;
6.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.產品由防爆電機、葉輪、風筒、風帽、傳動組件、活頁
風門、防鳥網、安全網等部件組成；
2.傳動形式：電機直聯；
3.檢修方式：拆卸風帽檢修。
1.It is composed of explosion-proof motor,impeller,wind-cone,hood,drivingparts, hinge-door bird-proof and safe net parts,etc;
2.Driving tye: motors are connected directly;
3.Maintenance: dismount hood to maintain.
主要技術參數 Main technical parameters
離心式 Centrifugal type
機號
Fan No |
轉速(r/min)
Rev |
風壓(Pa)
Wind pressure |
風量(m3/h)
wind volumn |
裝機容量(KW)
Capacity |
噪聲dB(A)
Noise |
重量
Weight |
| 3 |
1450 |
220,210,188
167,122 |
878,925,1059
1130,1253 |
0.37 |
≤57 |
~88 |
| 3.5 |
1450 |
299,285,256
227,166 |
1395,2083,1682
1794,1990 |
0.55 |
≤59 |
~95 |
| 4 |
1450 |
412,391,372
334,298 |
1887,2083,2194
2510,2677 |
0.75 |
≤62 |
~115 |
| 4.5 |
1450 |
495,471,423
376,231 |
2966,3124,3574
3812,4514 |
0.75 |
≤63 |
~154 |
| 5 |
1450 |
615,582,522
485,378 |
4068,4285,4903
5438,6113 |
0.75 |
≤64 |
~195 |
| 6 |
960 |
385,367,330
293,223 |
5024,5512,6120
6782,7338 |
1.5 |
≤65 |
~234 |
| 7 |
960 |
548,499,448
398,371 |
8015,8804,9827
10836,11925 |
3.0 |
≤68 |
~292 |
| 8 |
960 |
721,686,654
587,521 |
12563,13565,14157
15824,16708 |
5.5 |
≤70 |
~374 |
| 10 |
960 |
1072,1020,916
813,702 |
22150,23298,26573
28395,31436 |
7.5 |
≤72 |
~396 |
軸流式 Axial type
機號
Fan No |
轉速(r/min)
Rev |
風壓(Pa)
Wind pressure |
風量(m3/h)
wind volumn |
裝機容量(KW)
Capacity |
噪聲dB(A)
Noise |
重量
Weight |
| 3 |
2850 |
181,206,232 |
3300,3000,2600 |
0.37 |
66 |
~15 |
| 1450 |
62,66,72 |
1650,1560,1450 |
0.18 |
52 |
| 4 |
2850 |
193,230,250 |
7450,6350,1450 |
0.30 |
69 |
~28 |
| 1450 |
176,184,190 |
5700,5400,4580 |
0.55 |
67 |
| 5 |
1450 |
135,162,191 |
8000,7000,5600 |
0.55 |
68 |
~37 |
| 960 |
113,122,131 |
7000,6700,6400 |
0.37 |
63 |
| 720 |
88,92,96 |
6000,5000,4100 |
0.25 |
58 |
| 6 |
1450 |
232,251,267 |
15000,14000,13000 |
0.75 |
73 |
~57 |
| 960 |
168,183,193 |
11000,10000,9100 |
1.1 |
67 |
| 720 |
111,127,136 |
8500,8000,7600 |
0.55 |
62 |
| 7 |
960 |
165,201,212 |
17500,15000,12500 |
1.5 |
69 |
~85 |
| 720 |
141,163,177 |
12000,11000,9200 |
0.75 |
63 |
| 560 |
83,94,102 |
9300,8500,7200 |
0.55 |
59 |
| 8 |
960 |
175,207,228 |
27000,25000,23000 |
2.2 |
72 |
~124 |
| 720 |
129,154,167 |
20000,18000,16000 |
1.5 |
66 |
| 560 |
78,96,121 |
15750,14500,12250 |
0.75 |
63 |
| 9 |
960 |
202,236,256, |
34500,29000,24000 |
3 |
76 |
~146 |
| 720 |
126,156,177 |
32000,28000,24000 |
2.2 |
73 |
| 560 |
102,118,126 |
24000,21500,18600 |
1.1 |
67 |
| 10 |
960 |
251,286,317 |
50000,45000,39000 |
5.5 |
81 |
~216 |
| 720 |
141,167,123 |
46000,40000,35000 |
3 |
76 |
| 560 |
111,125,133 |
28000,24000,20000 |
1.5 |
69 |
| 11.2 |
960 |
253,296,322 |
56900,49500,40400 |
5.5 |
82 |
~258 |
| 720 |
138,169,183 |
52500,45000,40000 |
3 |
77 |
| 560 |
111,128,142 |
32000,28000,25000 |
1.5 |
71 |

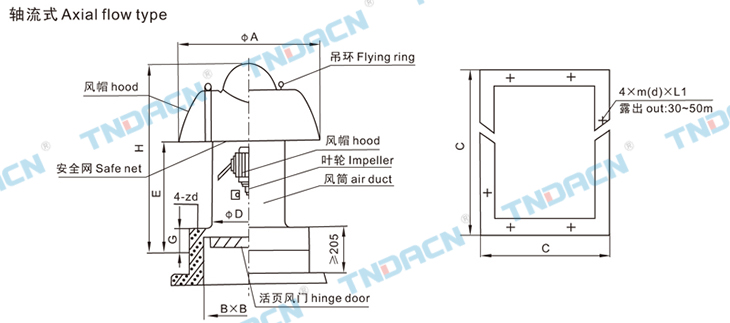

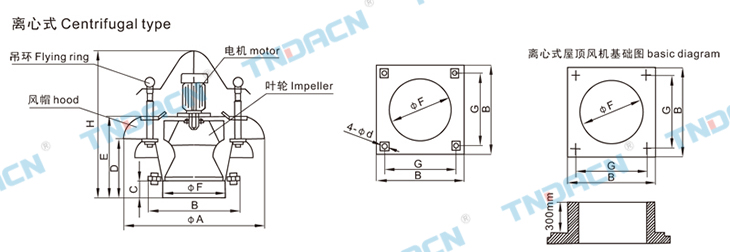

外形及安裝尺寸 Outline & installtion dimensions
