詳細信息

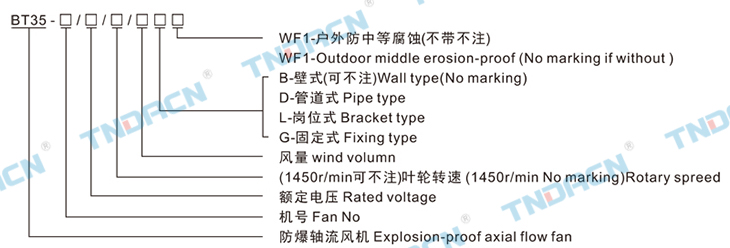

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous: division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammabledust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.產品由防爆電機、葉片、風筒等組成；
2.具有噪音低、能耗低、性能優等特性；
3.除作通風、排氣之用，也可在較長的排氣管道內間隔串聯安裝，提高管道內的壓力；
4.電纜布線，鋼管布線訂貨時需注明。
1.The product is composed of explosion-proof motor, vanes, air duct and otherparts;
2.It`s in low noise, low consumption and perfect performance;
3.Besides being used for ventilating and exhausting, it also can be installed inserie with certain spaces to improve thepressure in pipe;
4.Wiring with cable or steel tube please note it when you place an order
使用 Applications
一、采用BT35防爆軸流風機，需在出風口中連接管道時，必須考慮與管道連接方式，以減少通風機的動壓在接管段因擴散
而造成的損失。
When connecting the pipes to the outlet of the BT35 explosion-proof axial flow fan, take account of the connection wayto reduce the losswhich caused by dynamic pressure of ventilator in the a connected pipe.
1.當管道 直徑與通風機桶相等時，管道的擴散損失可忽略不計(如圖1)；
2.當 ≤1.5時而管道長度小于管內徑5～8倍時，可不加擴散器(如圖2)；
3.當1.5≤ ＜2.5時，管道與通風機應安裝如圖所示型式之擴散器(如圖3)；
4.當 ＞2.5時，管道與通風機應安裝如圖所示型式之擴散器(如圖4)。
1.When the diameter of the pipe is equal to that of ventilator barrel, the lossof diffusion in pipecan be omitted(As shown in fig 1);
2.When ≤1.5and the pipe is 5~8 times shorter than the internal pipediameter,the diffuser can be unset(As shown in fig 2);
3.When 1.5≤ ＜2.5，the diffuser as shown in the diagram shall be fittedto the pipeand ventilator (As shown in fig 3);
4.When ＞2.5，the diffuser as shown in the diagram shall be fitted to thepipe andventilator (As shown in fig 4).
主要技術參數 Main technical parameters

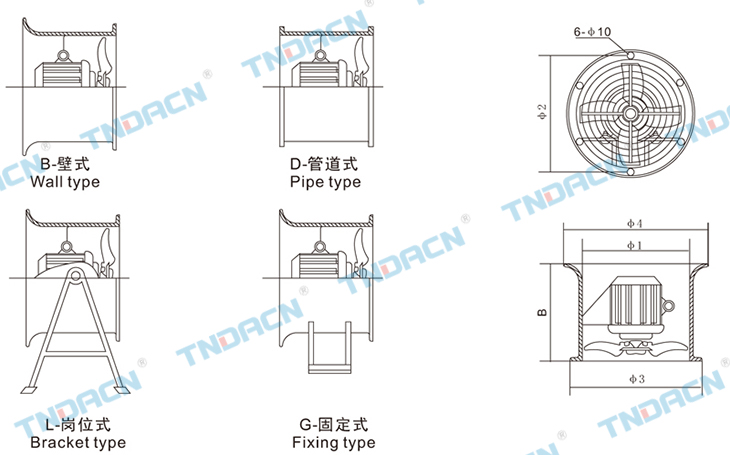

外形及安裝尺寸 Outline & installtion dimensions
