詳細信息

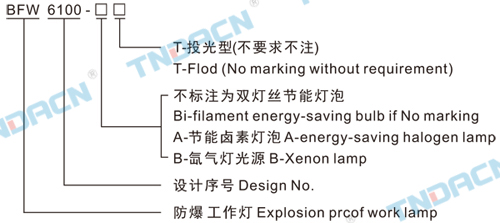

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.如采用雙燈絲節能燈泡，發光效率高、強光、工作燈可隨意轉換、連續工作時間長；
3.如采用特制節能鹵素?zé)襞荩浒l(fā)光效率高、光通量為2000Lm；
4.如采用氙氣燈光源，發光效率高、光能量為3200Lm，是同功率鹵素?zé)襞莸?倍， 照度是100W鹵素?zé)襞莸谋鼙叮瑹襞輭勖L達10000小時，是普通鹵素?zé)舻?～10倍，在相同亮度下所耗的電量是普通鹵素?zé)襞莸?5%，而且發熱量小，防震效果好， 更加安全可靠。
5.高能無記憶電池可隨時充電，一次充足電后半年內儲電量不低于滿容量的85%，兩年內不低于滿容量的50%；
6.照明角度可作120度調節，燈箱底部裝有方便移動的輪子，操作簡單；
7.如牰氣壓三腳支架，還能在1.2～3米高度范圍內任意升降(訂購時請注明)。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.If using Bi-filament bulb for energy conversation, the features are high luminous efficiency and a long time for working.Working light and highlight can be transformed freely.
3.If using halogen bulb for energy conversation, the features are high luminous efficiency and luminous flux of 2000lm.
4.If using the xenon lamp as illuminant, the features are high luminous efficiency and luminous flux of 3200lm, whoseluminous flux is five timesthat of the halogen bulb with the same power. The illuminance is five times that of halogen bulbwith power 100W.Its serive life can be reached 10000hurs,which is five to ten times that of halogen bulb. Under the samebrightness, its electric quantity takes a 15% of halogen bulb. Additionally, it has features of small calorific value and greatshock-proof, which can make it much safer and more reliable.
5.High non-memory battery can be charging at any moment . After charging full for one time, the power reserves should benot less than 85% full capacitance in half a year, and this is be not lsee than 50% full capacitance in two years.
6.The illumination angle can be ajusted in 120°, there are movable wheels on the3 bottom of shell. The operation is simple.
7.If purchasing the pressure tripod, it can be lifted freely in the range of 1.2~3 meters (please note when ordering).
雙燈絲節能燈泡 Bi-filament energy-saving bulb
節能鹵素?zé)襞?energy-saving halogen lamp
B-氙氣燈光源 B-Xenon lamp

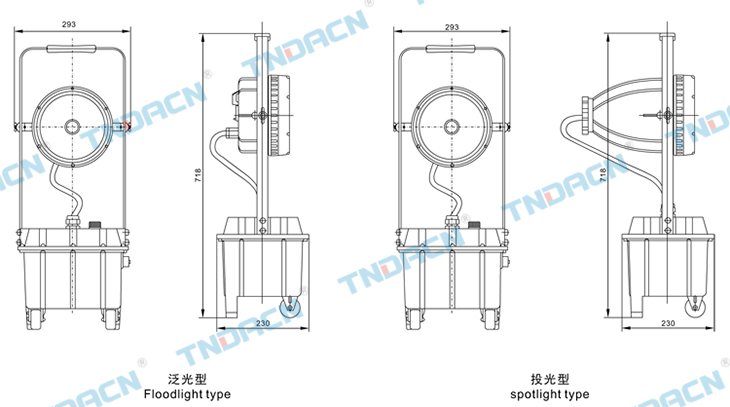

外形安裝尺寸 Outline&installation dimension
