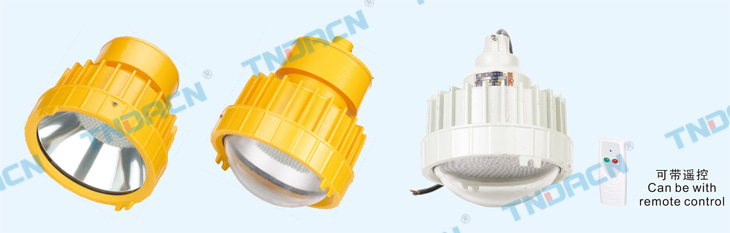

ccd94系列防爆免維護節能燈（ⅡC）

詳細信息

詳細信息

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.可配裝白熾燈、汞燈、高壓鈉燈、金鹵燈；
6.應用于石油、化工、航天、軍工等場所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.燈罩材質采用鋼化玻璃，透光性好，抗高能量沖擊，且為防眩光設計，經過光學二次設計并得到了實際測試的驗證；
3.本系列產品增加了遙控控制系統，為客戶帶來更加便捷的操作。
4.燈具為一體式結構，但光源腔、接線腔分別獨立，安裝維護方便，電氣性能可靠；
5.反光罩材質為優質鋁板，其反光設計經過了專業光學軟件的二次配光設計，且通過了實際測試的驗證，提高了燈具的使用率；
6.采用密封結構，保證了較強的防水、防塵能力；
7.燈體和出線套采用無線連接，便于用戶安裝和維修；
8.鋼管布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilicate glass with great transmittance and high energy shock resistance. It's the antiglare design. After designed by special software design of distribution for two times, it can get the confirmation;
3.This series adds remote control system, provide customers a more convenient operation.
4.It is holistic structure, however, the light cavity, connecting line cavity are independent. That's convenient to install and maintain, and it has reliable electrical properties;
5.Reflector is made of high-quality aluminium plate. After it has been designed by special software design of distribution for two times, and passed the actual test, the availability factor of lamps can be raised;
6.It has sealing structure, which has ensured the great functions of water proof and dust proof.
7.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.
8.Wiring with steel tube.

LED光源特點 The features for LED

1.超長壽命：壽命可到5~10萬小時；
2.光效高，無輻射，無光污染：相對于傳統高壓鈉燈和金鹵燈節能60%以上；光的利用率高，集中照射地面，避免了空中的光學污染；綠色環保。光源本身不含鉛、汞等有害氣體；無輻射紫外線紅外線；
3.高效二次配光技術：同等功率下使地面提高了30%以上；
4.安裝簡便可靠；
5.散熱控制出色：相對于氣溫，溫升不超過25℃；
6.光色均勻：不加透鏡，不以提高亮度而犧牲均勻光色，從而保證無光圈，光色均勻；
7.維護成本低：相對于傳統的防爆燈，LED防爆燈維護成本低，經過比較，2年多可收回全部投入成本；
8.寬電壓范圍：85V~265VAC輸入或40V~20VDC輸入，啟動迅速，亦不存在因氣溫低而導致難以啟動問題；
9.適合范圍廣，該系列防爆燈可配合太陽能、風能使用，形成綠色節能照明組合，電壓可由客戶指定12/24VDC或110/220VAC。
10.發光范圍大，無眩光：采用的大功率LED均為120°以上發光角，同時消除了眩光，提高了通道照明的安全性；
11.顯色性好：顯色指數可達80CRI以上，能更真實的還原物體顏色，提高分辨率；
12.低損耗、高效率：整體等效高達85%以上，功率因素達到0.95以上。
1.A long service life: it can last from 50 thousand to 1 million hours.
2.Great luminance, no radiation and no light pollution: The traditional high pressure sodium lamp and metal halide lamp can not compare with BAD 63 lamp in energy saving. It has higher 60% than them. The light can be used efficiently. It is shining intensively avoid the light pollution. And it can enhance the green environmental protection. The source of light don't have any poisonous gas, including lead and Hg. There are no ultraviolet radiation or infrared radiation.
3.Effieient distribution for two times: Under the same power, it can be made the illuminance lifting over 30%.
4.Installing conveniently and reliably.
5.Fine control of heat dissipation: As opposed to environment temperature, its temperature is not more than 25℃.
6.Even light color: Without any lens or dropping the brightness, make sure it has no aperture and the light color is Even.
7.Low maintenance cost: As opposed to the traditional explosion-proof lamp, this kind of lamp with LED has low maintenance cost. After the comparison, you can recover all the cost during two years.
8.Wide voltage range: iuput 85V~265VAC or 40V~20V DC. Starting fast can restrain the temperature being low. Which would make it starting hard.
9.Wide scope: This series lamps can be relied on the solar energy and wind energy to use. It can form a group for green energy-saving illumination. Generally, the voltage can depand on the users' demands. You can choose 12/24V DC or 110/220V AC.
10.Wide range for shining, no glare: LED with great power use the radiant angle over 120°. It can vanish the glare, and safety of illumination.
11.Fine color rendering: Color rendering index can reach over 80CRI, which can recover the color better and improve the resolution.
12.Low loss and high efficiency: The lighting efficiency can reach over 85%. And the power factor is more than 0.95.

主要技術參數 Main technical parameters

額定電壓 Rated Voltage	額定功率 Rated Power	防護等級 Degree of protection	光源種類 Luminaries	防爆標志 Ex-mark	防腐等級 Eroion-proof -class	電纜外徑 Cable's outer dia.(mm)	進線口螺紋 Inlet thread (G")
AC220V DC36V	20W,30W 40W,50W 60W,80W, 100W	IP65	LED	ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(歐標) DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)	WF1	φ10~φ14	3/4"
