詳細信息

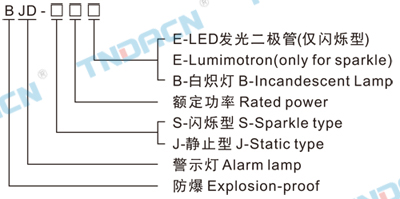

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.溫度組別：T1~T4/T5/T6；
4.內裝白熾燈或LED光源；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment;
3.Temperature class:T1~T4/T5/T6;
4.Built-in incandescent lamp or LED light source;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.
產品特點 Featrues
1.殼體采用高強度合金鋁一次性壓鑄成型，表面景高速拋
丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度
高強度好、防腐性能優良，表面塑粉附著力強具有良好
的防腐能力，外表光潔，美觀大方；
2.鋼化玻璃燈罩、強度高、耐沖擊，顏色有紅、黃、藍等
供選擇；
3.作為建筑物頂部四周樗或信號報警用;
4.鋼管或電纜布線。
1.The enclosure is moulded by the high strength aluminum alloy for one time. Its exterior has sprayed with plastic by highpressure static after shot blasting at high speed. There are some advantages in the enclosure; tight structure, highdensitymaterials, great strength, fine explosion-proof functions. It has strong adhesion of plastic powder and great anti corrosiveperformance. The exterior is clean and beautiful.
2.Cover is made of toughened glass, high intensity, impact-resistance, There are three colours for selection: red, yellowand blue;
3.Used as marking or signal alarm for building top or surround;
4.Connection with steel tube or cable.
主要技術參數 Main technical parameters
靜止式配用光光源 Static fitted with luminaries AC220V/100W，200W白熾燈 Incandesent lamap
閃爍式配用光源 Sparkle fitted with luminarees AC200V/6V/8W 150次/min LED 光源 頻閃 Frequency sparkle
注：如采用LED光源，只能用閃爍式，靜止型只能用白熾燈作為光源。
Caution;Stuic fitted with Incandesent lamp and Sparkle fitted with LED lamp
